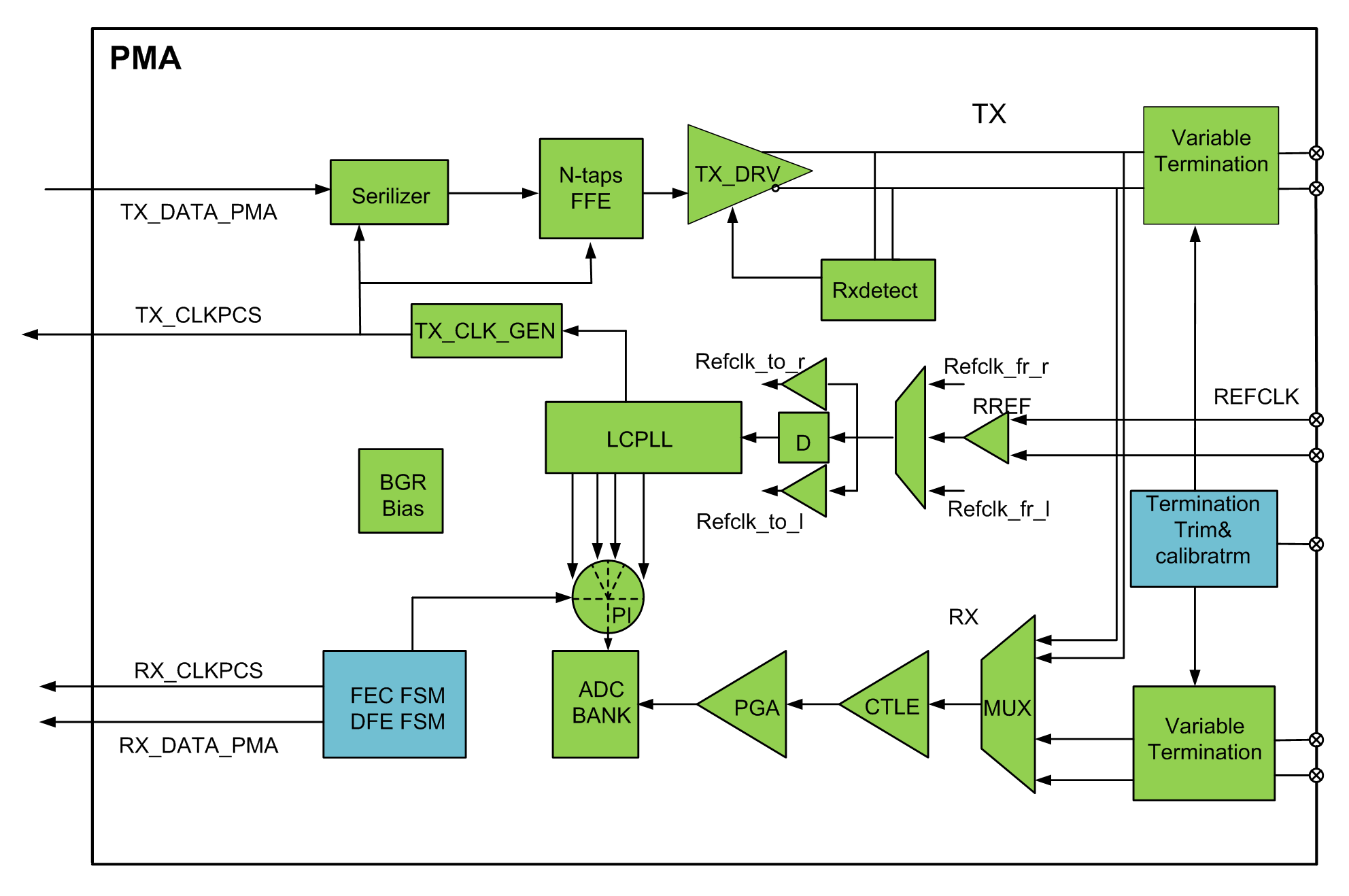

Overview
56G SerDes IP core supports PAM4 signaling in the range of 25.0-60.0 Gbps using full-rate and half-rate modes with scrambled data. Non-return-to-zero (NRZ) signaling is supported in the range of 5.0-30.0 Gbps using full, half, and quarter-rate modes. Either scrambled or block coded (for example, 8B/10B) data is supported for 5.0-12.5 Gbps in NRZ mode. However, scrambled data is required for data rates greater than 12.5 Gbps.
The 56G SerDes IP cores are intended for use as a chip-to-chip or a card-to-card connection mechanism.
Highlights
- • Data rate support up to 56Gbps (per lane)
- • Support the following protocols: 400GAUI-8, 400GAUI-16, CEI-56G-LR, CEI-56G-MR, CEI-56G-VSR, 40GBASE-CR4, 40GBASE-KR4, 100GBASE-CR10, 100GBASE-CR4, 100GBASE-KR4
- • Aggressive equalization capability to enable 56Gbps operation and legacy system upgrades
- • Variable AGC amplifier
- • Programmable Long Tail Equalizer (LTE)
- • Digitally-control-impedance termination resistors
- • Configurable TX output differential voltage swing
- • On-chip AC coupling for maximum interoperability
- • Support for manufacturing and system test
- • Generalized scan design compliant with manufacturing functional (macro) tests
- • Full-rate loopback and Built-In Self-Tests (BIST) with selectable PRBS patterns
- • Compatible with IEEE 1149.6-2003 ACJTAG
- • Optimized performance, power consumption and area
- • Supports Flip-Chip package
Deliverables
- - GDSII&CDL Netlist
- - Verilog Model
- - LEF Layout Abstract(.LEF)
- - Liberty Timing Models(.lib)
- - Verify Results
- - Specification
- - Datasheet
- - Integration Guideline
- - Evaluation Plan
- - Leading support for package design, SI&PI modeling and production test development
Highlights
- • Data rate support up to 56Gbps (per lane)
- • Support the following protocols: 400GAUI-8, 400GAUI-16, CEI-56G-LR, CEI-56G-MR, CEI-56G-VSR, 40GBASE-CR4, 40GBASE-KR4, 100GBASE-CR10, 100GBASE-CR4, 100GBASE-KR4
- • Aggressive equalization capability to enable 56Gbps operation and legacy system upgrades
- • Variable AGC amplifier
- • Programmable Long Tail Equalizer (LTE)
- • Digitally-control-impedance termination resistors
- • Configurable TX output differential voltage swing
- • On-chip AC coupling for maximum interoperability
- • Support for manufacturing and system test
- • Generalized scan design compliant with manufacturing functional (macro) tests
- • Full-rate loopback and Built-In Self-Tests (BIST) with selectable PRBS patterns
- • Compatible with IEEE 1149.6-2003 ACJTAG
- • Optimized performance, power consumption and area
- • Supports Flip-Chip package
Applications
-
400/800G Communication
-
Hyperscale Data Center
-
AI and Machine Learning
